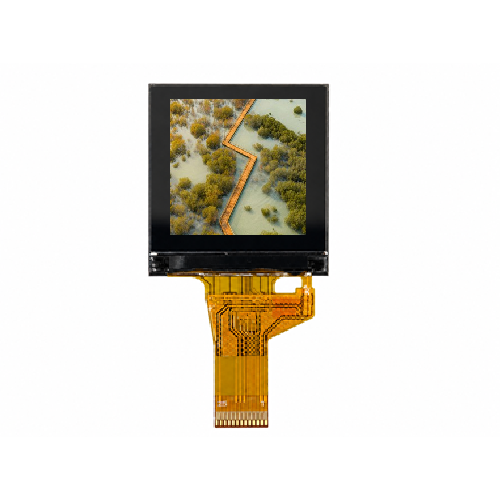

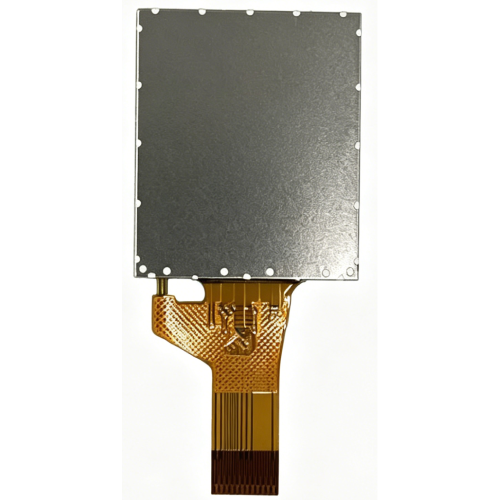

Small-sized
1.3-inch 240 x 240
Micro TFT LCD Display Module
- Model AWK-240240T13 SERIES
- Size 1.3"
- Resolution 240 x 240
- Interface SPI
- Brightness 500 - 1000 nits
- Touch Optional
- Operating Temp -20 ~ 70 °C
- Viewing Angle IPS
Available options in this category
| Item | Brightness | Interface | Touch | A. Area | O.P. Temp. | Viewing Angle |
| N02A | 500 | SPI | - | 23.40 x 23.40 | -20 ~ 70 °C | IPS |
| N02B | 700 | SPI | - | 23.40 x 23.40 | -20 ~ 70 °C | IPS |
| N02C | 900 | SPI | - | 23.40 x 23.40 | -20 ~ 70 °C | IPS |
| N04 | 1000 | SPI | - | 23.40 x 23.40 | -20 ~ 70 °C | IPS |
Product Overview
Engineered for ultra-compact devices, this 1.3-inch (240x240) Micro IPS Display Module offers exceptional visual clarity with brightness options up to 1000 nits for superior daylight readability. Featuring a pin-saving SPI interface, a reliable -20°C to 70°C operating temperature range, and optional touch customization, it is the ideal display choice for wearables, compact meters, portable medical devices, and mini industrial HMIs.
