Small-sized
4.3-inch 800 x 480
Wide-Temp IPS Display Module
- Model AWK-800480T43 Series
- Size 4.3"
- Resolution 800 x 480
- Interface RGB
- Brightness 400-500 nits (cd/m2)
- Touch Optional
- Operating Temp -30 ~ 80 °C
- Viewing Angle IPS
Available options in this category
| Item | Brightness | Interface | Touch | A. Area | O.P. Temp. | Viewing Angle |
| N05 | 900 | RGB | - | 95.04 x 53.86 | -30 ~ 85 °C | IPS |
| P01 | 400 | RGB | RTP | 95.04 x 53.86 | -30 ~ 80 °C | IPS |
| PC01A PC03 |
400 350 |
RGB | CTP | 95.04 x 53.86 | -30 ~ 80 °C | IPS |
| PC05 | 800 | RGB | CTP | 95.04 x 53.86 | -30 ~ 85 °C | IPS |

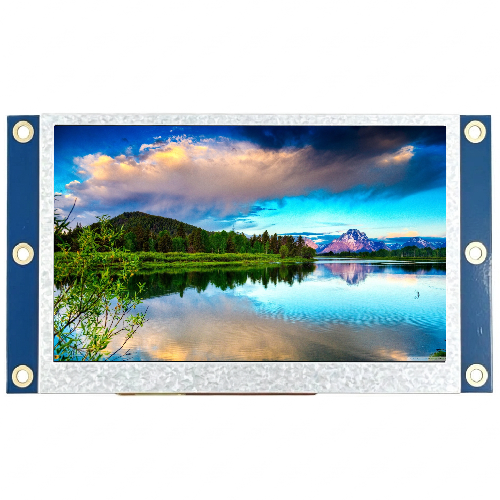

Product Overview
Designed for reliable visual performance, this 4.3-inch TFT LCD module features an 800 x 480 resolution and IPS technology for wide viewing angles and consistent color clarity. Equipped with an RGB interface and 350–900 nits brightness, it ensures clear image display and straightforward system integration. Operating across a broad temperature range from -30°C to 80°C with optional touch functionality, it offers functional stability in challenging environments. This display module provides a practical solution for industrial control systems, automotive dashboards, medical devices, and outdoor equipment.
