Small-sized

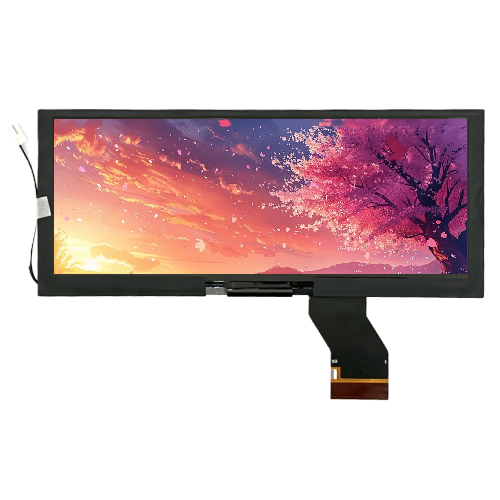

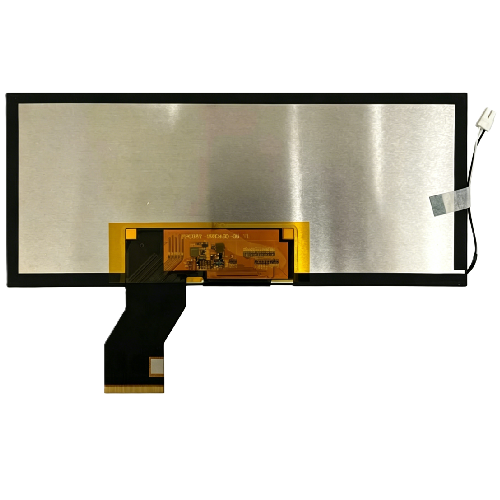

8.8-inch 1280 x 480
Ultra-Wide Bar Display | High Brightness & Extreme Wide-Temp
- Model AWY-1280480T88 SERIES
- Size 8.8"
- Resolution 1280 x 480
- Interface LVDS
- Brightness 1000 nits (cd/m2)
- Touch Optional
- Operating Temp -30 ~ 85 °C
- Viewing Angle IPS
Available options in this category
| Item | Brightness | Interface | Touch | A. Area | O.P. Temp. | Viewing Angle |
| N02A | 1000 | LVDS | - | 209.28 x 78.84 | -30 ~ 85 °C | IPS |
| N03 | 1200 | LVDS | - | 209.28 x 78.84 | -30 ~ 85 °C | IPS |
| PC01 | 900 | LVDS | CTP | 209.28 x 78.84 | -30 ~ 85 °C | IPS |
| PC03 | 1000 | LVDS | CTP | 209.28 x 78.84 | -30 ~ 85 °C | IPS |
Product Overview
Designed for space-constrained and outdoor environments, this 8.8-inch Ultra-Wide Bar-Type (1280x480) IPS Display Module delivers ultra-high brightness up to 1200 nits for daylight readability. Featuring an extreme operating temperature of -30°C to 85°C, a reliable LVDS interface, and optional PCAP touch, it is the ideal display choice for automotive dashboards, server monitors, smart appliances, and compact HMI systems.
