Small-sized
4.0-inch 480 x 800
Native Portrait IPS Display with PCAP Touch
- Model AWK-480800T40N05/PC04A
- Size 4.0"
- Resolution 480 x 800
- Interface MIPI
- Brightness 300 / 450 nits (cd/m2)
- Touch PCAP
- Operating Temp -20 ~ 70 °C
- Viewing Angle IPS
Available options in this category
Product Overview

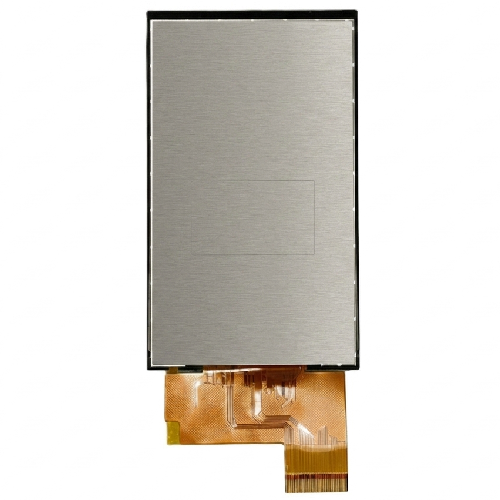

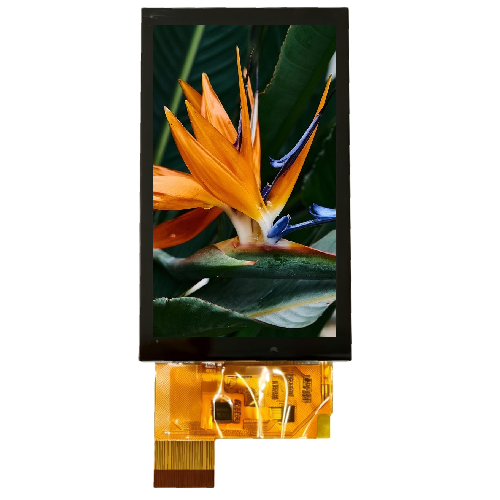

Designed for modern interactive applications, this 4.0-inch portrait TFT LCD module combines a sharp 480 x 800 resolution with IPS technology for wide viewing angles and clear visual clarity. Integrated with a Projected Capacitive Touch Panel (PCAP) and a high-speed MIPI interface, it enables responsive touch interaction and efficient data transfer. Delivering up to 450 nits brightness and operating within -20°C to 70°C, it ensures stable display output across various settings. This display module offers a practical solution for handheld terminals, smart home controllers, medical devices, and IoT systems.
