Bar-Type Display
7.0-inch 280 x 1424
Ultra-Wide Bar Display
- Model AWL-2801424T70N01
- Size 7.0"
- Resolution 280 x 1424
- Interface MIPI
- Brightness 300 nits (cd/m2)
- Touch Optional
- Operating Temp -20 ~ 70 °C
- Viewing Angle IPS
Available options in this category
Product Overview

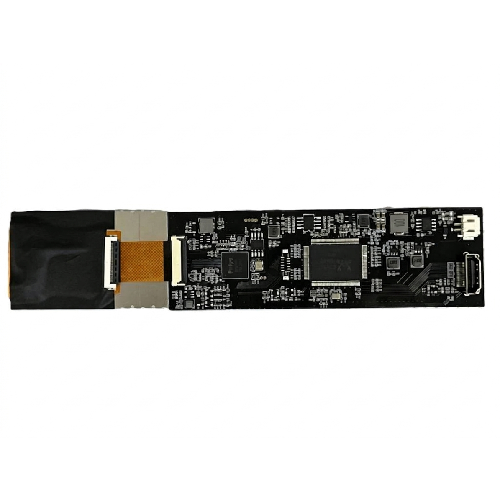

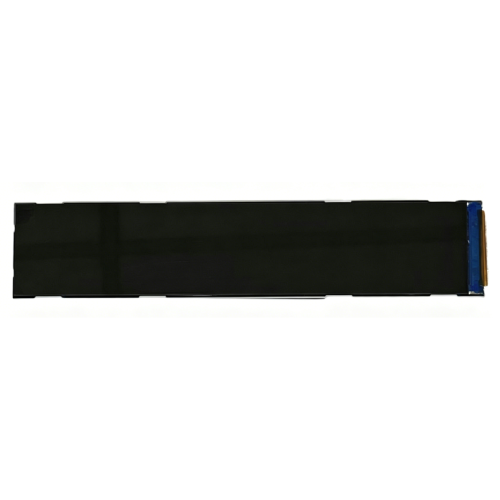

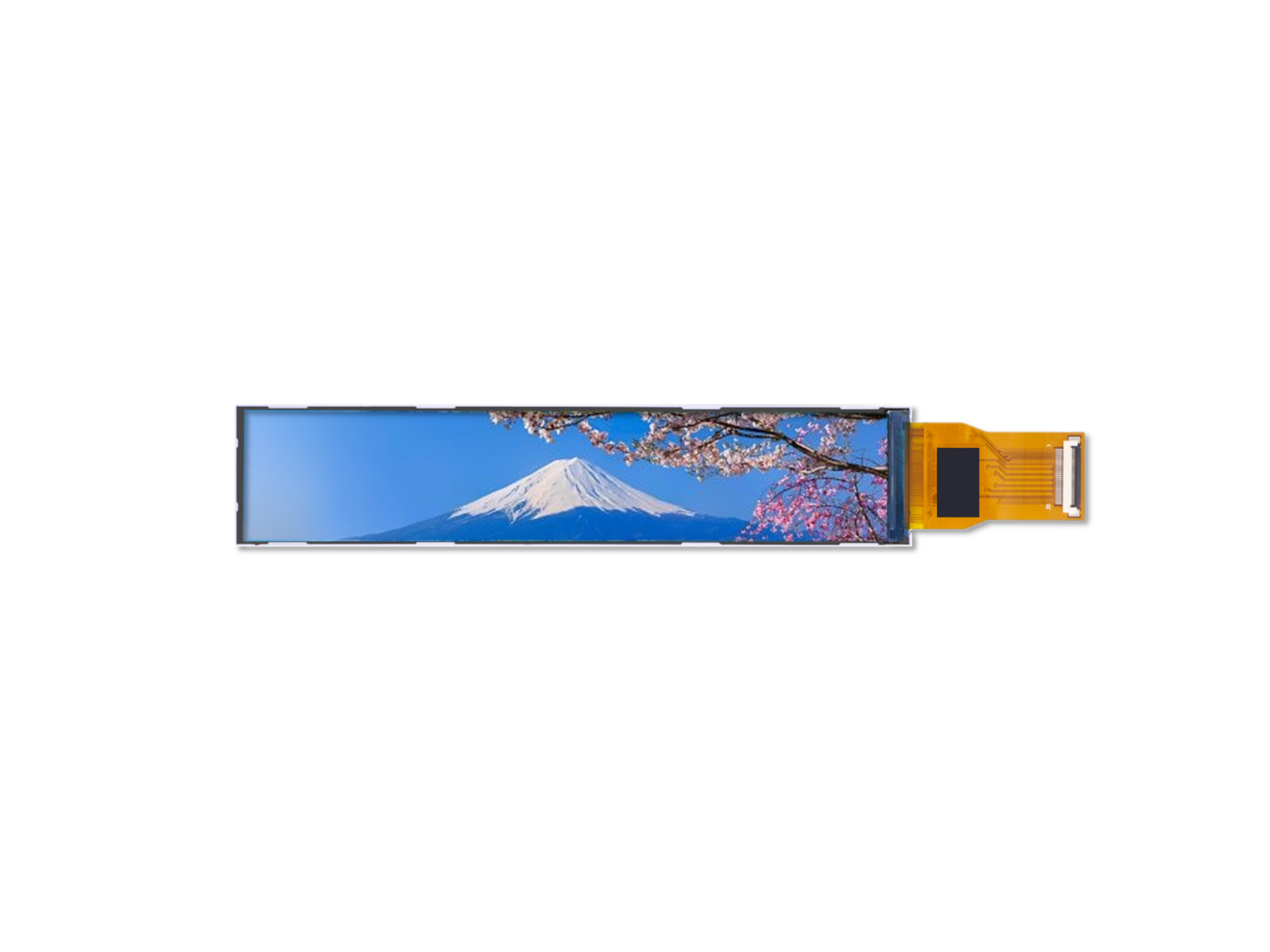

Designed for unique wide-aspect and slim applications, this 7.0-inch Bar-Type (280x1424) IPS Display Module delivers crisp visual performance with IPS wide-viewing angles. Featuring a high-speed, low-power MIPI interface, a reliable -20°C to 70°C operating temperature range, and optional touch customization, it is the ideal display choice for smart shelf edge signage, home appliance control panels, audio status displays, and compact industrial HMIs.
