Small-sized
2.8-inch 240 x 320
TFT LCD Display with RTP Touch Panel
- Model AWY-240320T28
- Size 2.8"
- Resolution 240 x 320
- Interface MCU/SPI/RGB
- Brightness 260 nits (cd/m2)
- Touch RTP
- Operating Temp -20 ~ 70 °C
- Viewing Angle 60/70/70/70
Available options in this category
| Item | Brightness | Interface | Touch | A. Area | O.P. Temp. | Viewing Angle |
| Y-N09 | 200 | MCU/SPI/RGB | - | 43.2 × 57.6 | -20 ~ 70°C | 60/70/70/70 |
| Y-PC21A | 250 | SPI/RGB | CTP | 43.2 × 57.6 | -20 ~ 70°C | IPS |

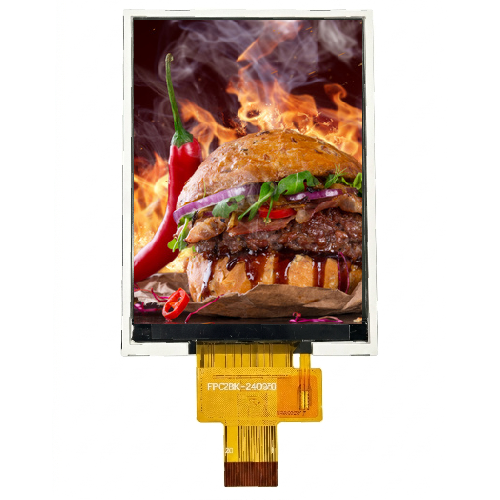

Product Overview
Featuring a clear 240 x 320 resolution, this versatile 2.8-inch TFT LCD module comes equipped with an integrated Resistive Touch Panel (RTP) for intuitive user interaction. Supporting flexible MCU, SPI, and RGB interface choices, it enables seamless system integration and low power consumption. This compact touchscreen display is an ideal solution for industrial controllers, medical devices, smart home panels, and portable equipment!
