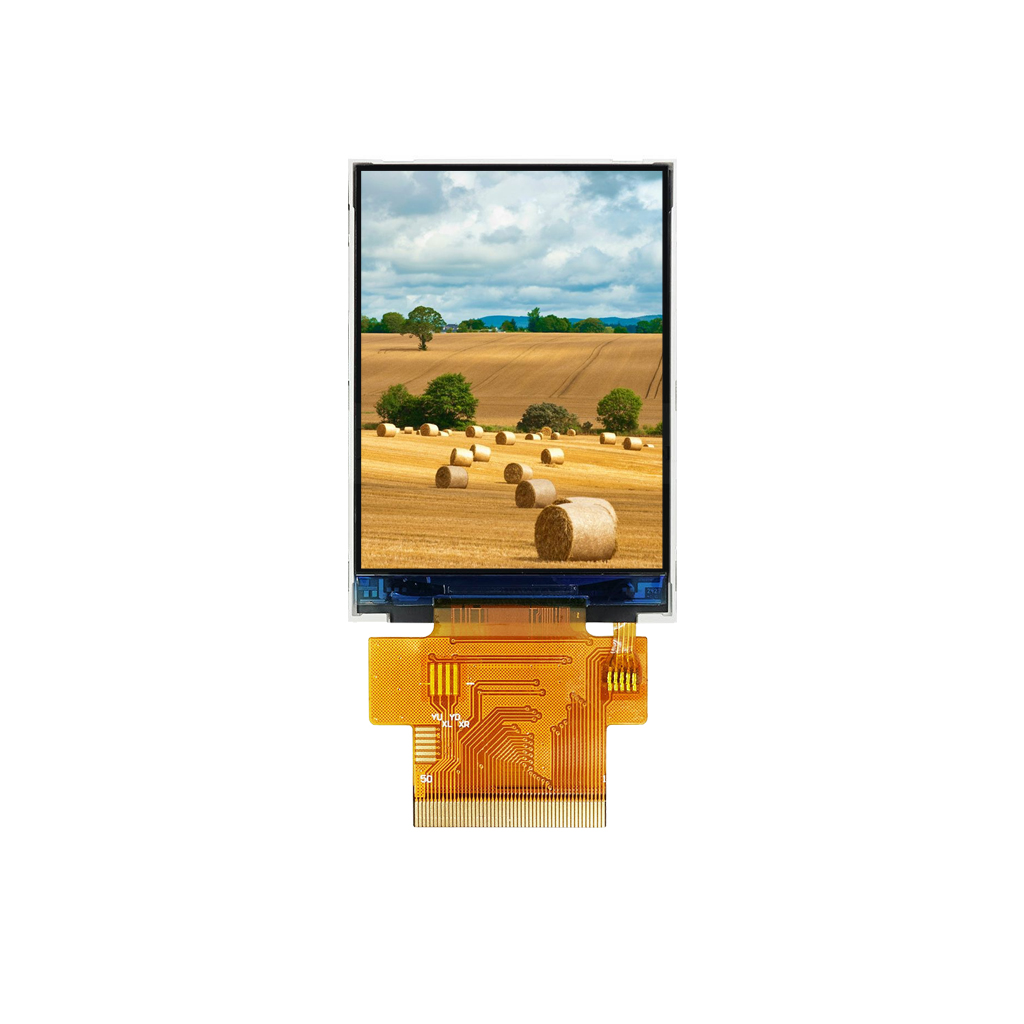

Small-sized
2.4-inch 240 x 320
Full-Viewing-Angle Industrial LCD Module
- Model AWK-240320T24 SERIES
- Size 2.4"
- Resolution 240 x 320 IPS TFT LCD Display
- Interface MCU
- Brightness 350 nits (cd/m2)
- Touch Optional
- Operating Temp -20 ~ 70 °C
- Viewing Angle IPS
Available options in this category
| Item | Brightness | Interface | Touch | A. Area | O.P. Temp. | Viewing Angle |
| N15 | 450 | MIPI | - | 36.72 x 48.96 | -20 ~ 70 °C | IPS |
| N17 | 350 | SPI | - | 36.72 x 48.96 | -20 ~ 70 °C | TN:06 |
| N18 | 500 | SPI+MPU | - | 36.72 x 48.96 | -30 ~ 80 °C | IPS |
Product Overview
Featuring a sharp 240 x 320 resolution and an IPS panel with full viewing angles, this versatile 2.4-inch TFT LCD module ensures clear, vibrant color displays from any angle. Equipped with an efficient MCU interface for streamlined system integration, it delivers reliable performance across extreme temperatures from -20°C to 70°C. With 350 nits brightness and optional touch functionality, it offers enhanced usability for diverse environments. This industrial-grade display module is the ideal solution for handheld meters, smart home panels, medical devices, and IoT applications!
