- Model AWK-480272T43 Series
- Size 4.3"
- Resolution 480 x 272
- Interface RGB
- Brightness 300 - 900 nits
- Touch Screen Optional
- Operating Temp. -20 ~ +70 °C
- Viewing Angle IPS / TN
| Model | Brightness | Interface | Touch | Active Area | O.P. Temp. | Viewing Angle |
| N04 N05 |
700 600 |
RGB | No | 95.04 x 53.86 | -20 ~ 70 °C | 70/70/50/70 |
| N06 N08 N09 |
400 600 900 |
RGB | No | 95.04 x 53.86 | -30 ~ 85 °C | IPS |
| N22 | 300 | RGB | No | 95.04 x 53.86 | -30 ~ 85 °C | IPS |
| P04 P05 |
500 | RGB | RTP | 95.04 x 53.86 | -20 ~ 70 °C | 70/70/50/70 |
| P06 P08 |
320 450 |
RGB | RTP | 95.04 x 53.86 | -30 ~ 85 °C | IPS |
| PC05 | 500 | RGB | PCAP | 95.04 x 53.86 | -20 ~ 70 °C | 70/70/50/70 |
| PC06 PC09 PC20 |
320 800 400 |
RGB | PCAP | 95.04 x 53.86 | -30 ~ 85 °C | IPS |

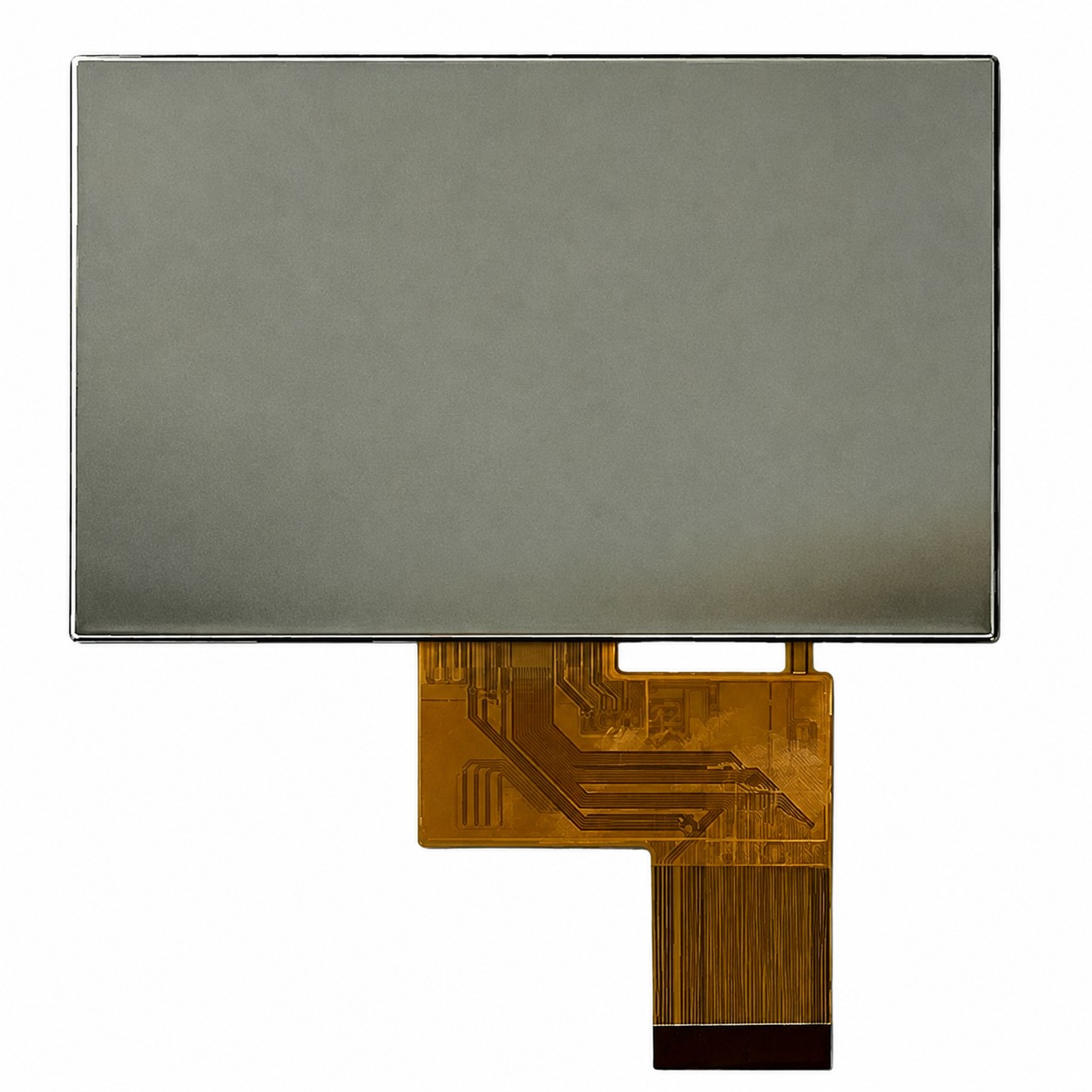

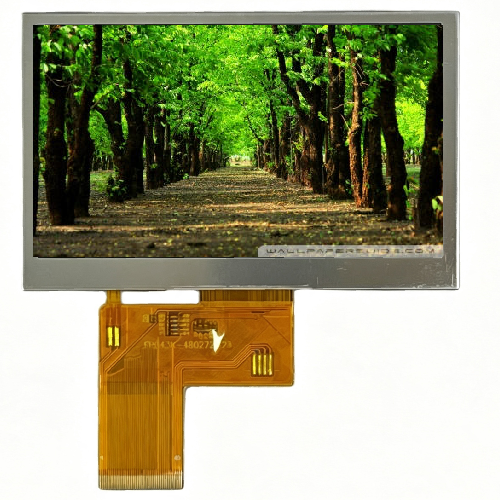

Our 4.3-inch 480 × 272 TFT LCD display module is designed for industrial, medical, smart home, handheld, and HMI applications that require reliable performance and long product availability. Based on a stable RGB interface platform, this display series offers multiple configuration options, including TFT only, Resistive Touch (RTP), and Projected Capacitive Touch (PCAP), allowing customers to select the most suitable solution for their application.
To support different operating environments, brightness options range from 300 to 900 nits, making the module suitable for both indoor and high-brightness applications. Wide operating temperature versions up to -30°C to +85°C and IPS wide viewing angle options ensure excellent image quality and dependable performance in demanding industrial environments. With an active area of 95.04 × 53.86 mm, this 4.3" TFT LCD module provides a compact yet vivid display solution that can be further customized with cover glass, optical bonding, high-brightness enhancement, or touch panel integration to meet specific project requirements.
