Small-sized

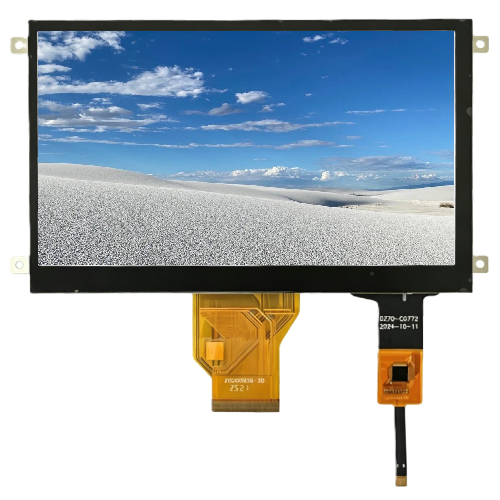

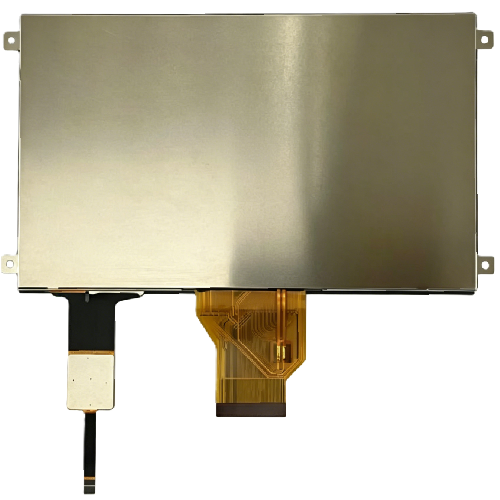

7.0-inch 800 x 480
High-Brightness (up to 1100 nits) Wide-Temp IPS Display with Optional Touch
- Model AWK-800480T70 SERIES
- Size 7.0"
- Resolution 800 x 480
- Interface RGB / LVDS
- Brightness 350 - 1100 nits (cd/m2)
- Touch Optional
- Operating Temp -30 ~ 80°C
- Viewing Angle IPS
Available options in this category
| Item | Brightness | Interface | Touch | A. Area | O.P. Temp. | Viewing Angle |
| N14 N15 |
350 1000 |
RGB LVDS |
- | 152.40 x 91.44 | -20 ~ 70 °C | 70/70/60/60 |
| N20 N21 N22 |
350 500 1100 |
RGB | - | 152.40 x 91.44 | -30 ~ 85 °C | IPS |
| N25 N48 |
1000 |
LVDS RGB |
- | 152.40 x 91.44 | -30 ~ 85 °C | IPS |
| P04 | 400 | RGB | RTP | 152.40 x 91.44 | -30 ~ 80 °C | IPS |
| P21 P46 |
350 400 |
RGB | RTP | 152.40 x 91.44 | -30 ~ 85 °C | IPS |
| PC04A PC05J |
400 | RGB LVDS |
CTP | 152.40 x 91.44 | -30 ~ 80 °C | IPS |
| PC24 PC25 |
850 900 |
RGB LVDS |
CTP | 152.40 x 91.44 | -30 ~ 85 °C | IPS |
| PC28 | 400 | RGB | CTP | 154.08 x 85.92 | -20 ~ 70 °C | TN12:00 |
| PC44 | 400 | RGB | CTP | 152.40 x 91.44 | -30 ~ 85 °C | IPS |
Product Overview
Designed for demanding human-machine interfaces, this 7.0-inch TFT LCD module features an 800 x 480 resolution and IPS technology for wide viewing angles and stable optical clarity. Offering flexible RGB and LVDS interface options alongside brightness levels up to 1100 nits, it delivers strong readability under high ambient light. Engineered to operate reliably across temperatures from -30°C to 80°C with optional touch integration, it provides functional stability. This display module serves as a practical solution for industrial control terminals, marine electronics, medical devices, and outdoor equipment.
