Small-sized
5.0-inch 720 x 1280
IPS Portrait Display with MIPI Interface
- Model AWK-7201280T50 Series
- Size 5.0"
- Resolution 720 x 1280
- Interface MIPI
- Brightness 350 - 1000 nits (cd/m2)
- Touch Optional
- Operating Temp -20 ~ 70 °C
- Viewing Angle IPS
Available options in this category
| Item | Brightness | Interface | Touch | A. Area | O.P. Temp. | Viewing Angle |
| N03 N08 |
750 1000 |
MIPI | - | 62.1 x 110.4 | -20 ~ 70 °C | IPS |
| PC02 PC08 PC10 |
420 700(min) 600 |
MIPI | CTP | 62.1 x 110.4 | -20 ~ 70 °C | IPS |
| PC17 | 700(min) | RGB | CTP | 62.1 x 110.4 | -20 ~ 70 °C | IPS |

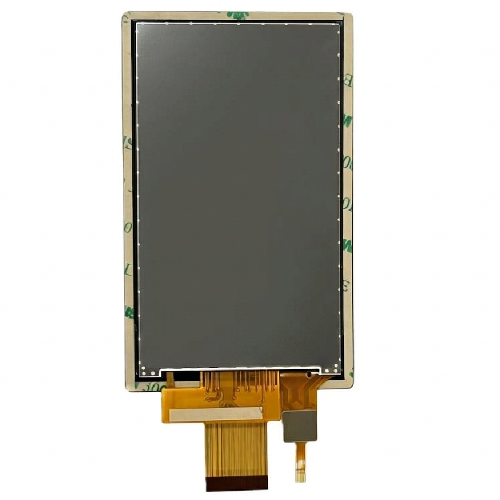

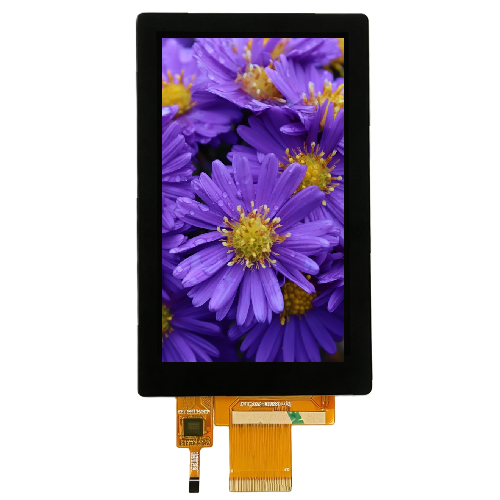

Product Overview
Designed for versatile interactive terminals, this 5.0-inch portrait TFT LCD module features a high 720 x 1280 resolution and IPS technology for clear image details and wide viewing angles. Driven by a fast MIPI interface, it ensures high-speed video rendering and efficient power usage. Offering options from 350 up to 1000 nits brightness with optional touch support, it operates reliably between -20°C and 70°C. This display module provides a practical solution for handheld inspection devices, smart home controllers, medical instruments, and outdoor equipment.
