Small-sized
8.0-inch 1024 x 768
4:3 IPS TFT LCD | LVDS Interface & Optional Touchscreen
- Model AWK-1024768T80N01/N02
- Size 8.0"
- Resolution 1024 x 768
- Interface LVDS
- Brightness 500 nits (cd/m2)
- Touch Optional
- Operating Temp -20 ~ 60 °C
- Viewing Angle IPS
Available options in this category
Product Overview

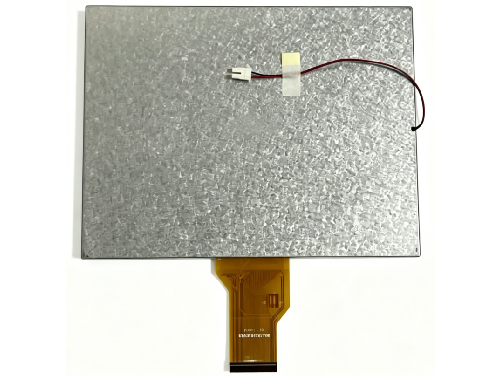

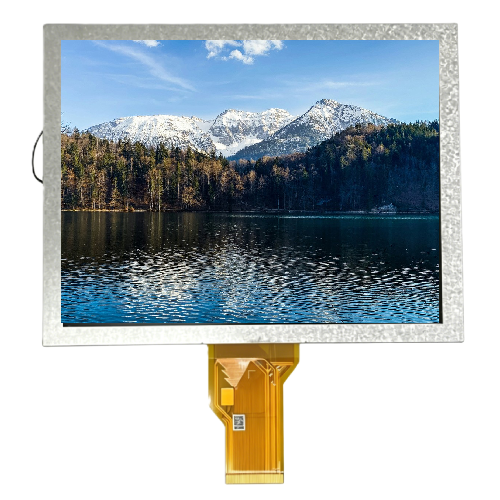

Designed for industrial control, this 8.0-inch XGA (1024x768) IPS TFT LCD Module offers a classic 4:3 aspect ratio and IPS wide-viewing angles for sharp, clear visuals from any direction. Featuring a high-reliability LVDS interface, 500 cd/m² brightness, and an operating range of -20°C to 60°C, it includes optional touchscreen integration—making it the ideal solution for industrial HMIs, medical control panels, POS systems, and smart equipment upgrades.
