Small-sized
7.0-inch 1024 x 600
High-Resolution High-Brightness (up to 1100 nits) Wide-Temp IPS Display
- Model AWK-1024600T70 SERIES
- Size 7.0"
- Resolution 1024 x 600
- Interface RGB / MIPI
- Brightness 250 - 1100 nits (cd/m2)
- Touch Optional
-
Operating Temp
-20 ~ 70 °C
-30 ~ 85 °C - Viewing Angle IPS
Available options in this category
| Item | Brightness | Interface | Touch | A. Area | O.P. Temp. | Viewing Angle |
| N17 | 600 | LVDS | - | 154.21 × 85.92 | -30 ~ 85 °C | IPS |
| P04B | 450 | RGB | RTP | 154.21 × 85.92 | -20 ~ 70 °C | IPS |
| PC04A PC04B |
250 500 |
RGB | CTP | 154.21 × 85.92 | -20 ~ 70 °C | IPS |
| PC09A PC14B |
1000 450 |
MIPI LVDS |
CTP | 154.21 × 85.92 | -20 ~ 70 °C | IPS |
| PC17 | 550 | LVDS | CTP | 154.21 × 85.92 | -30 ~ 85 °C | IPS |
| PC19 PC26 |
400 500 |
LVDS | CTP | 154.21 × 85.92 | -20 ~ 70 °C | IPS |
| PC27A | 450 | RGB | CTP | 154.21 × 85.92 | -20 ~ 70 °C | IPS |
| PC34 | 1000 | RGB | CTP | 154.21 × 85.92 | -30 ~ 85 °C | IPS |

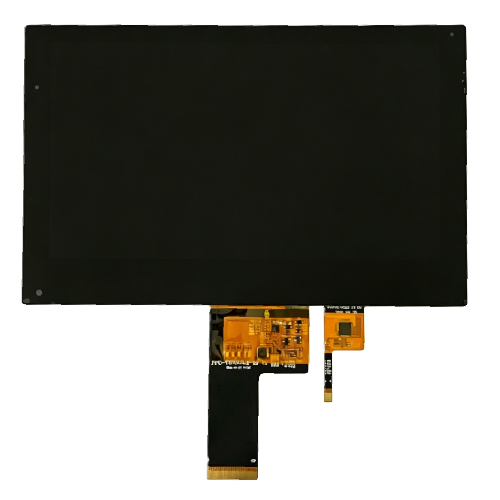

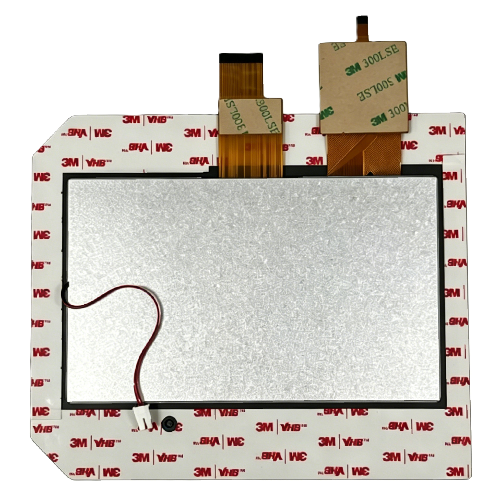

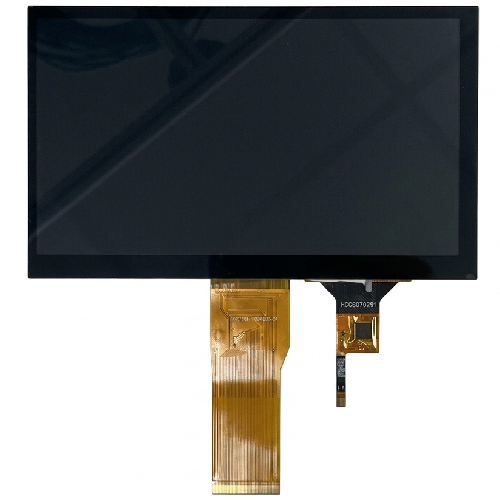

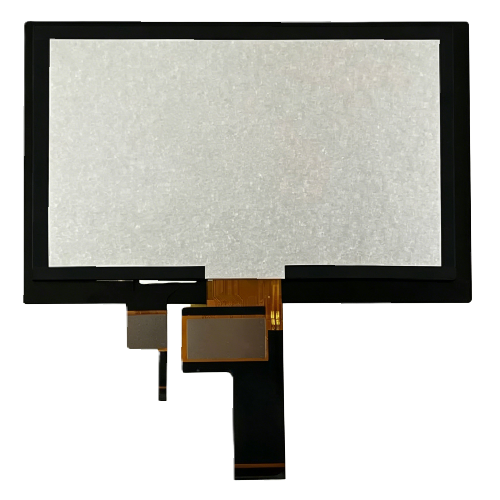

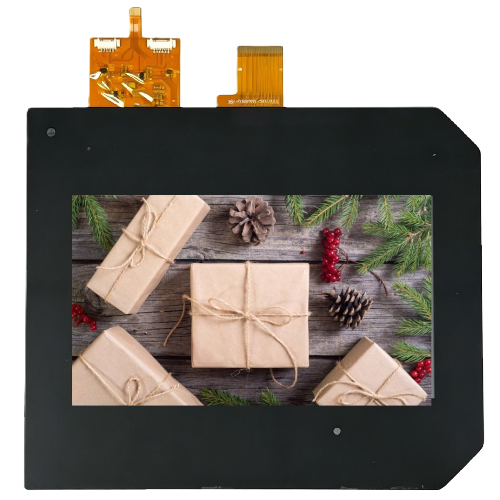

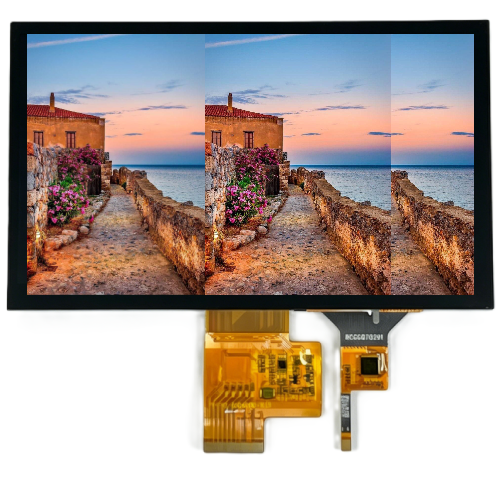

Product Overview
Designed for high-performance interactive terminals, this 7.0-inch TFT LCD module features a 1024 x 600 resolution and IPS technology for crisp visual detail and wide viewing angles. Offering multi-interface options including RGB, MIPI, and LVDS along with brightness up to 1100 nits, it ensures strong display clarity and system flexibility. Operating reliably across extended temperatures from -30°C to 85°C with optional touch functionality, it provides durable operational stability. This display module serves as a practical solution for industrial automation equipment, medical monitors, outdoor displays, and smart control panels.
